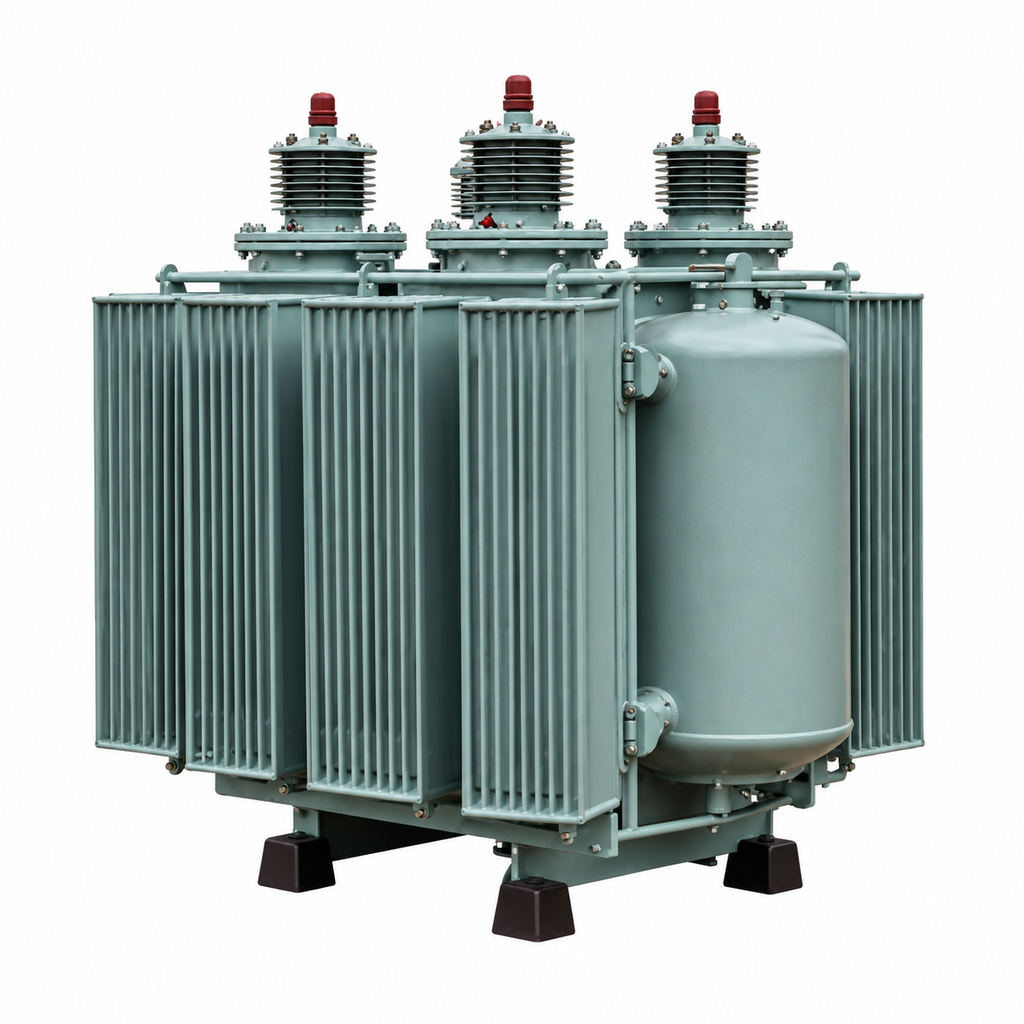

Industrial transformer, Oil Immersed Voltage Transforer

Industrial transformer, Oil Immersed Voltage Transforer

Special & Industrial Transformers are high-performance power conversion solutions designed for industrial, commercial, and utility applications. Our range includes Distribution, Power, Dry-Type, Cast Resin, Isolation, Auto, Rectifier, and Instrument Transformers, built to meet specific operational requirements. Manufactured with premium CRGO cores and copper/aluminium windings, they offer high efficiency, low losses, and reliable performance. Available from 25kVA to 100MVA up to 33kV, compliant with IS 1180, IS 2026, and IEC 60076 standards

0.00 AED 0.00 AED
  • Brand
  • Model
  • Type
  • Capacity Range
  • Rating
  • Frequency
  • Core Material
  • Winding Material
  • Cooling Type
  • Insulation Class
  • Efficiency
  • Tap Changer
  • Vector Group
  • Enclosure
  • Brand Options
  • Standards

Sku: STE-T-IT-004
Brand: SPRINT ELECTRIC

Specification

Brand Sprint Electric
Model Special & Industrial Transformer
Type Oil-Filled / Dry-Type / Cast Resin
Capacity Range 25kVA to 100MVA
Rating Up to 33kV (HV) / 433V (LV)
Frequency 50Hz / 60Hz
Core Material CRGO Silicon Steel (Low Loss)
Winding Material Electrolytic Copper / Aluminium
Cooling Type ONAN / ONAF / AN / AF
Insulation Class Class A / E / B / F / H
Efficiency Up to 99.5% at Full Load
Tap Changer OLTC / OCTC (As Required)
Vector Group Dyn11 / Dyn1 / YNyn0 / Custom
Enclosure IP23 to IP55 (As per Application)
Brand Options Siemens, Schneider, ABB, L&T, Legrand
Standards IS 1180, IS 2026, IEC 60076
