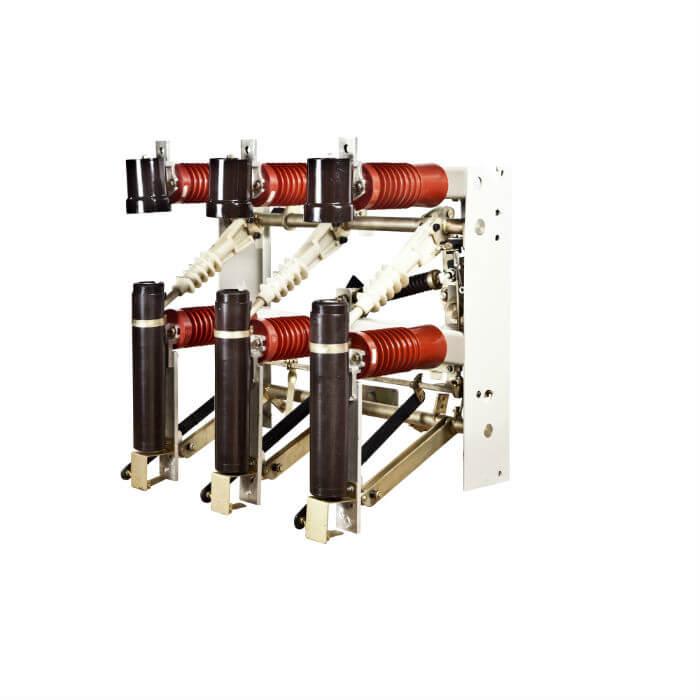

22 kV Load Break Switches

11 KV / 22 KV / 33 KV Load Break Switches, 630Amp., 31.5kA/3 Sec, Indoor Type with HRC Fuse

The isolators shall comply with IEC 60129 standards and be of triple-pole, spring-assisted, hand-operated, non-automatic type with quick-break contacts. The operating handle will have three clearly marked positions: ON, OFF, and EARTH, with a suitable padlocking arrangement available in any position. For safety, a locking mechanism shall be provided to prevent direct operation from the ON position to the EARTH position in a single step.
